Runva RWHWN10000 Series Hydraulic Winches (10,000lbs/4,536kg)
Runva RWHWN10000 Series Hydraulic Winches (10,000lbs/4,536kg)
SKU:RWHWN10000YD
* Please note, we do not carry stock in store and goods are dispatched from supplier.
Couldn't load pickup availability
DESCRIPTION

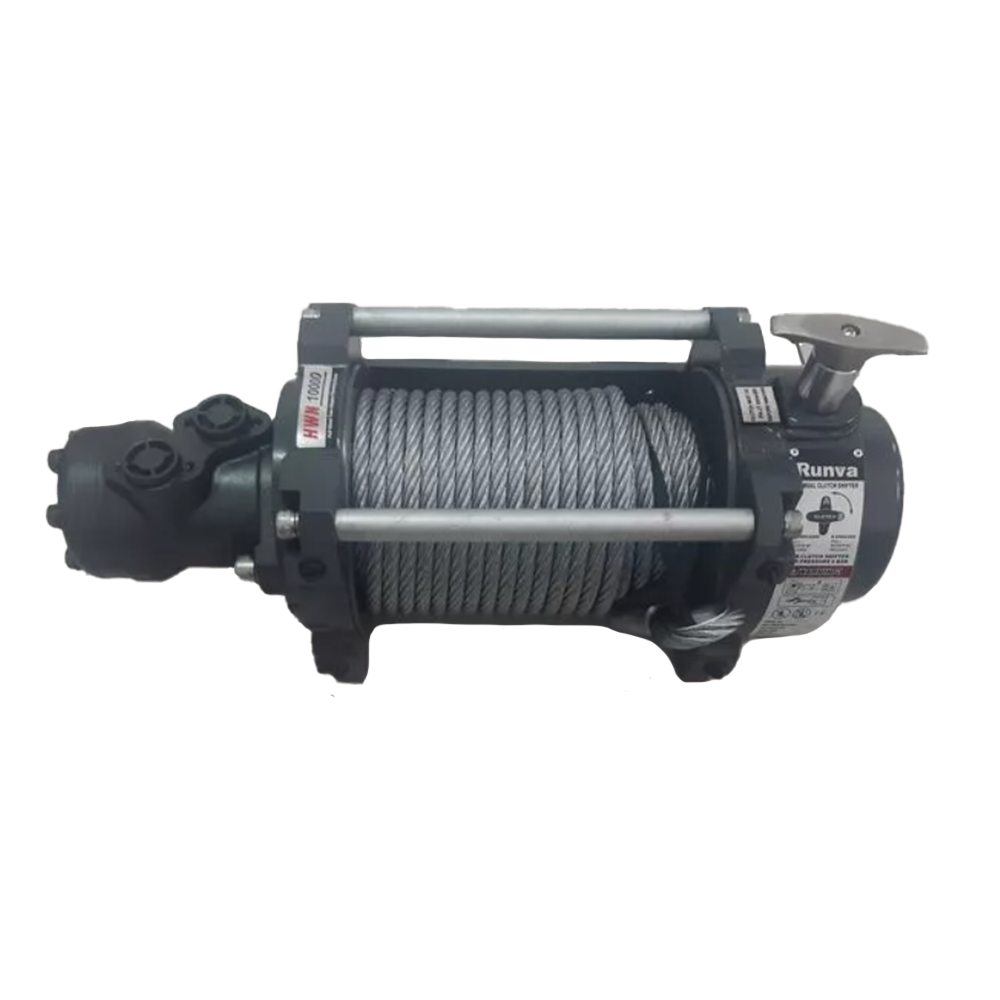

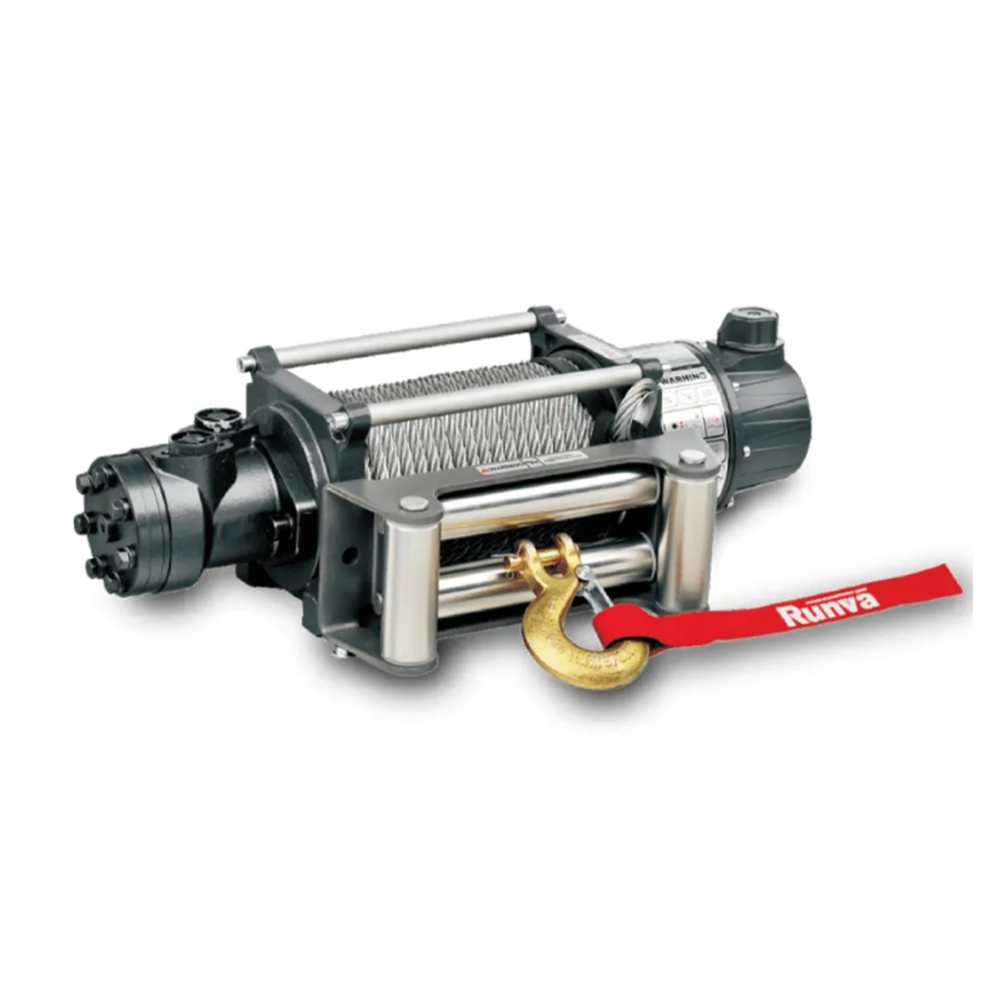

RWHWN10000 Runva Hydraulic Winch w/ Steel Cable (10,000lbs/4,536kg)
Tackle your toughest recovery jobs with the RWHWN10000 Series Runva Hydraulic Winch. This Hydraulic powerhouse features a durable steel cable with a capacity of 10,000lbs (4,536kg), making it perfect for demanding use on flatbed trucks. Built to withstand harsh conditions, the RWHWN10000 Series ensures reliable performance when you need it most. Trust in the RWHWN10000 Series Runva Hydraulic Winch for unmatched strength and versatility on every journey.
*Please Note Pump and hydraulic lines sold separately as a kit – SKU: RHYWKIT
10000 lbs Hydraulic Car Trailer Winch Item No.HWX10000YD Winching Capacity of up to 10000lbs
with features:
-
- Popular winch for tow, utility and trailer applications
-
- Runva patent hardened steel, two-stage planetary gear reducer
-
- Meets SAEJ706 and CE standards
-

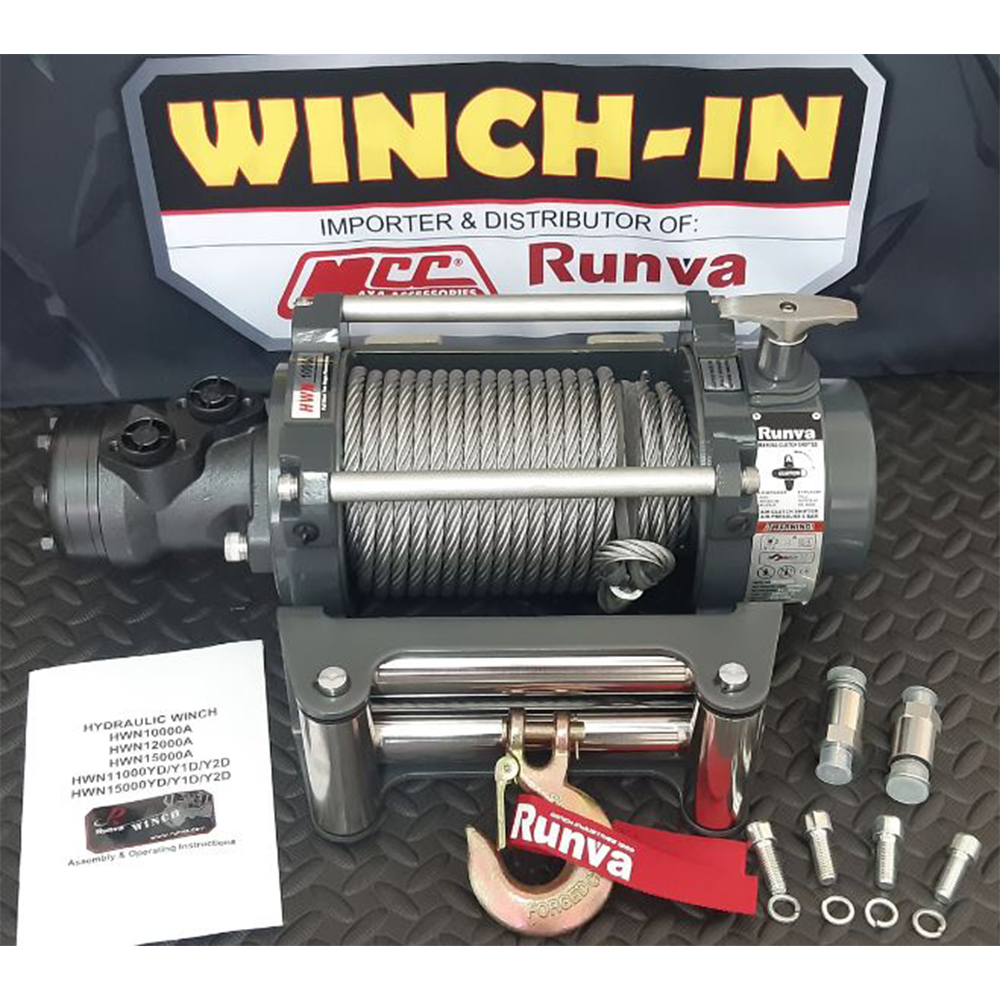

- Wire rope, Roller fairlead, Steel Winch bracket and SWR tensioner supplied
-
- Automatic scew cone braking action.
HWX10000YD
| SPECIFICATION | |
| Rated line pull | 10000lbs(4536kgs) |
| Motor: permanent magnet | 50ml/r |
| Oil Flow | 15~40L/min |
| Pressure | 12.5Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.6″×8. 5″ (Ø66mm×217mm) |
| Mounting bolt pattern | 21.7″×19.7 ” ×4.5 ” (550mm×500mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 4.0(15) | 7.2(2.2) |
| 4000(1814) | 3.9(565.6) | 6.6(25) | 12.5(3.8) |
| 6000(2722) | 7.5(1087.7) | 9.2(35) | 17.7(5.4) |
| 8000(3629) | 10.5(1522.8) | 10.6(40) | 20.0(6.1) |
| 10000(4536) | 12.5(1812.9) | / | / |
| Layer of cable | Rated line pulllbs(kgs) | Total rope on drumft (m) |
| 1 | 10000(4536) | 17.4 (5.3) |
| 2 | 7969(3615) | 39.4 (12.0) |
| 3 | 6624(3005) | 65.0 (19.8) |
| 4 | 5667(2571) | 85.3(26.0) |
| ITEM | HWX10000YD | ||
| Overall dimensions | 22.8″ (L)×7.9″ (W)×9.5″ (H) | ||
| (L×W×H) | 580(L) mm×201 (W) mm×242(H) mm | ||
| Net weight (Ibs) | 96.3 | ||
| (kgs) | 43.7 |
* Please note, we do not carry stock in store and goods are dispatched from supplier.
* Lead time may vary if out of stock with the supplier. We will contact you to confirm ready date after order is placed.
* Lead time is 3 to 7 working days if in stock with suppliers.
FREE shipping on all Runva winches.
Please note Image shown might differ from actual product
